| Ball Valve

Ball Valves are The Three types of rotary valves used in industrial plants. They are widely used in fluid-handing systems for flow control. These types of Rotary Valves are suitable for corrosive applications. They are used in Detergent, Pharmaceutical, Chemical, Rubber, Pulp and Paper Plants, Water Treatment Plants, Textile Mills and Food Processing Plants. In general, Ball valves offer many advantages when contrasted with other types of valves, they provide superior ease of operation, which can maintain and regulate high volume, high pressure and high temperature flow. Most ball valves offer rugged construction providing with a long time service life, and a comparable low cost. Additionally, the design of the Regulating Element allows the valve to function without of the complications of side loads, typical of the types of globe or butterfly valves, and the valve design permits inspection and repair of seats and seals without removing the valve's body from the pipeline.

Ball valves, as the name implies, are stop valves that use a ball to stop or start the flow. The ball performs the same function as the disk in the globe valve. When the valve handle is operated to open the valve, the ball rotates to a point where the hole through the ball is in line with the valve body inlet and outlet. When the valve is shut, which requires only a 90-degree rotation of the handwheel or Wormgear for most valves, the ball is rotated so the hole is perpendicular to the flow openings of the valve body, and flow is stopped.
Most ball valves are of the quick-acting type (requiring only a 90-degree turn to operate the valve either completely open or closed), but many are planetary gear operated. This type of gearing allows the use of a relatively small handwheel and operating force to operate a fairly large valve. The gearing does, however, increase the operating time for the valve. Some ball valves contain a swing check located within the ball to give the valve a check valve feature. Ball valves are normally found in the following systems aboard ship: seawater, sanitary, trim and drain, air, hydraulic, and oil transfer.

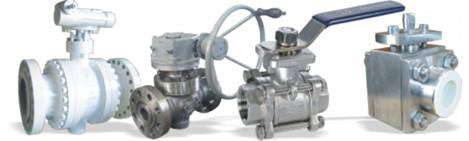

NEWTON VALVEis one of the leading and professional Ball Valve Manufacturer in China covering Floating Type Ball Valve, Trunnion Type Ball Valve, Forged Steel Ball Valve, Cast Steel Ball Valve, Stainless Steel Ball Valve, Threaded or Socket Welded Ends Ball Valve: One Piece Body (Uni-body) Ball Valve, Two Piece or Split Body Ball Valve, Three Piece Body Ball Valve, Three Way Ball Valve, Four Way Ball Valve, Top Entry Ball Valve, Eccentric V Type Ball Valve, Jacketed Type Ball Valve, Fully Welded Underground Ball Valve etc.

Material ranges from conventional cast Iron, Cast Steel or forged steel to special alloy materials like Monel, Inconel, Hastelloy or Duplex steel.
All of NEWTON VALVE'S Ball Valves are designed, manufactured and tested to API, ASTM, ANSI, JIS, DIN and BS Standards.
