Features & Specifications
.Design & Manufacture: ANSI B16.5, B16.34

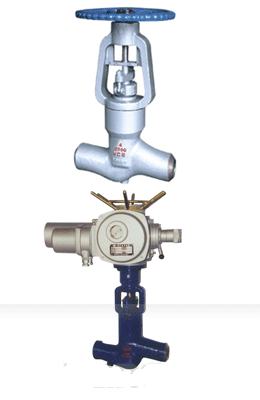

.Pressure Sealed Design
.Solid, Flexible or Split Wedge Design
.Back-seating, Renewable Seat Ring
.Full Port Or Reduced Bore
.Size Range: 2" to 32"N.B.
.Pressure Ratings: ANSI900, 1500 & 2500
.End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors, Compact Flange or other proprietary connections

.Materials Available in: WCB,LCB,CF8,CF8M,CF3,CF3M,WC6,WC9, C5,C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions

.Actuators: Manual, Electric, Hydrau-Pneumatic Actuator

.To MR 0175 and MR 103 upon request
