Features and Specifications:
.Three Way type Design
.Connection in Threaded or S.W Ends

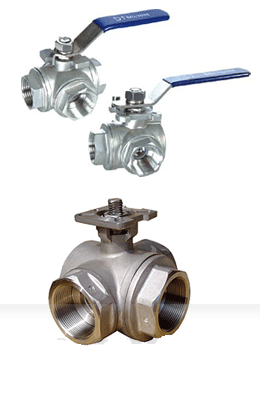

.Available in L Type Three Way Ball Valve and T Type Three Way Ball Valve
.Manufacturing in Stainless Steel and Carbon Steel in Both Forged and Casting Materials: WCB, A105, SS304, SS316
.Pressure Rating: 1000 PSI
.Floating Ball
.Threaded ends conform to B1.20.1, BS21, DIN259, DIN2999, ANSI B16.11
.Size Ranges: 1/4 ~2"
.Optional Lockable Handle Lever / Mounting Pad
.Blow-Out Proof Stem
.Fire Safe Design: API 6FA
.Medium: W.O.G
.Inspect & Test: API 6D / API598
.Valve Marking: MSS- SP-25

.To MR-01-75 on Request
